Equipment Description

As the core equipment in the oxidation aeration tank, submersible aerator diffuses the tiny bubbles into the water to be treated to achieve the purpose of stirring aeration. The submersible high-efficiency and energy-saving stirring aerator is a technical product developed and manufactured by our company to continuously adapt to industries (industrial wastewater and municipal sewage treatment) , which require biochemical treatment processes.

Model & Parameters

Model	LH-QB1.5	LH-QB3	LH-QB5.5	LH-QB7.5	LH-QB11	LH-QB15	LH-QB22
Power (KW)	1.5	3	5.5	7.5	11	15	22
Height (mm)	1380	1580	1970	2100	2260	2400	2500
Diameters (m)	1200	1420	1720	1720	2270	2270	2610
Depth (m)	3-20	3-20	3-20	3-20	3-20	3-20	3-20
Inflow (m³/h)	150	220	300	480	600	750	1300
Oxygenation capacity (kgo2/h)	~45	~66	~90	~144	~180	~225	~390
Working diameter (m)	4	6	9	12	15	18	23

Equipment Properties

Easy to install and transfer, no need to empty aeration basin;
No need air cooling;
100% no clogging
High and stable dynamic efficiency
Underwater working, noiseless
Longer lifespan.

Working Principle

The blower delivers pressurized air through movable piping to the rotor assembly. At high rotational speeds, the rotor breaks the air stream into fine bubbles while creating intense water mixing. The stator channel can ensure the air-water liquid evenly distributed in different shapes of aerator basin, meantime, strong mixing flow by rotor continuously mix the water, air and activated sludge, which ensures the ideal aeration efficiency. The negative-pressure while submersible aerator working, lead to self priming. The system's self-priming effect reduces blower pressure requirements to just water depth equivalence, cutting power consumption significantly compared to conventional aeration equipment.

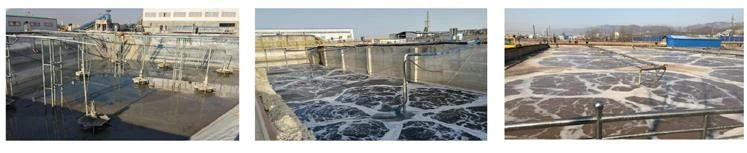

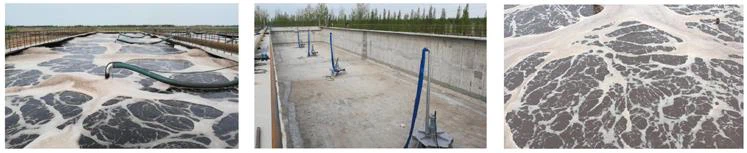

Application

Submersible aerator is primarily applied to pulp and papermaking wastewater, food processing wastewater industrial wastewater from other industries, and urban sewage treatment.
