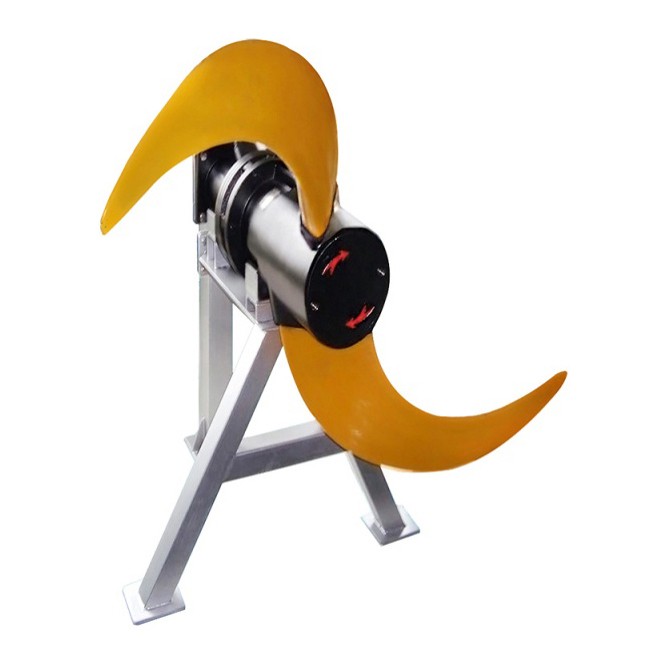

Equipment Description
Low-speed push-flow series agitators are designed for industrial and municipal wastewater treatment plants and are used to create water flow in processes such as regulation, reaction, hydrolysis, anoxic conditions, aeration, and ammonia/ phosphorus removal.
● Compact and Lightweight:
Features a compact structure with small volume and low weight.
Simple operation and maintenance, quick and convenient installation, and long service life.
● Self-Cleaning Impellers:
The impeller blades are designed with self-cleaning functionality to prevent foreign material entanglement and clogging.
● Enhanced Aeration Performance:
When used with an aeration system, it significantly reduces energy consumption while markedly improving oxygen transfer, effectively preventing sedimentation.
● Robust Motor Protection:
The motor windings are rated at F-grade insulation with a protection class of P68.
Equipped with maintenance-free imported primary lubrication bearings, oil chamber leak detection, and motor overheat protection, ensuring safe and reliable operation.
● Corrosion-Resistant Seals:
Critical components featuring mechanical seals utilize corrosion-resistant tungsten carbide.All fasteners are made of stainless steel.
Equipment Parameters
|
Model |
Motor Power (KW) |
Current (A) |
Impeller Diameter (mm) |
Impeller RPM (r/min) |
Weight (kg) |
|
LHQJB2.2/4-1400/2-42P |
2.2 |
5.3 |
1400 |
42 |
180 |
|
LHQJB2.2/4-1800/2-42P |
2.2 |
5.3 |
1800 |
42 |
180 |
|
LHQJB3/4-1100/2-115P |
3 |
7.2 |
1100 |
115 |
180 |
|
LHQJB3/4-1400/2-56P |
3 |
7.2 |
1400 |
56 |
185 |
|
LHQJB3/4-1800/2-56P |
3 |
7.2 |
1800 |
56 |
190 |
|
LHQJB4/4-1800/2-56P |
4 |
9.2 |
1800 |
56 |
170 |
|
LHQJB.4/4-1800/2-63P |
4 |
9.2 |
1800 |
63 |
190 |
|
LHQJB4/4-2500/2-42P |
4 |
9.2 |
2500 |
42 |
210 |
|
LHQJB5/4-2500/2-56P |
5 |
11.9 |
2500 |
56 |
240 |
|
LHQJB7.5/4-2500/2-63P |
7.5 |
11.9 |
2500 |
63 |
280 |
Technical Properties
- Compact Structure: Small footprint, lightweight design, suitable for limited space installation.
- Ease of Operation & Maintenance: Simplified mechanical components reduce downtime.
- Quick Installation: Pre-assembly module reduce the installation time.
- Extended Lifespan: Stainless steel (304/316L) and fiber-reinforced composites endure harsh chemistries.
- Energy Efficiency: Low-speed operation (20–100 RPM range) maximizes fluid movement per watt.
Application
Suitable for industrial and municipal wastewater treatment plants to facilitate processes such as:
- Mixing in Equalization Tanks: Homogenizing influent streams.
- Reaction & Hydrolysis Zones: Enhancing chemical/biological reactions.
- Anoxic & Aerobic Zones: Facilitating denitrification for nitrogen and phosphorus removal.
- Nutrient Removal Systems: Optimizing conditions for biological nutrient removal (BNR).
